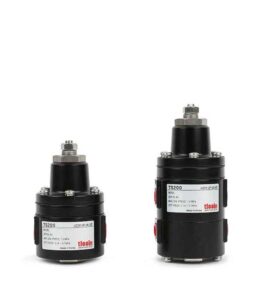

TS200 Series Lock Up Valve
The pneumatic lock up valve TS200 series shuts off the signal pressure line either when the air supply falls below an adjusted value or upon complete air supply failure. This causes the actuator to remain in its last position.
- Quick Response and High Precision.
- Easy set-up of lock up air pressure.
- When the signal pressure is more than the set pressure, it opens the air pressure line automatically.
- Small size and light weight allow the Lock Up Valve to be installed in the direct pipe fitting line without bracket.
| Item.Type | TS200S | TS200D |
|---|---|---|
| Signal Pressure | 20 PSI to 100 PSI | |
| Max Supply pressure | 145 PSI | |
| Max Lock Up Pressure | 100 PSI | |
| Differential Pressure | Below 1.5 PSI | |
| Flow Capacity (CV) | 0.9 | |
| Signal Connection | 1/4 NPT | |
| Supply/Output Connection | 1/4 NPT | |
| Operating Temp. | -20°C~70°C (Standard Type) | |
| Material | Aluminum diecasting | |
| Weight | 1 Lbs | 1.4 Lbs |
