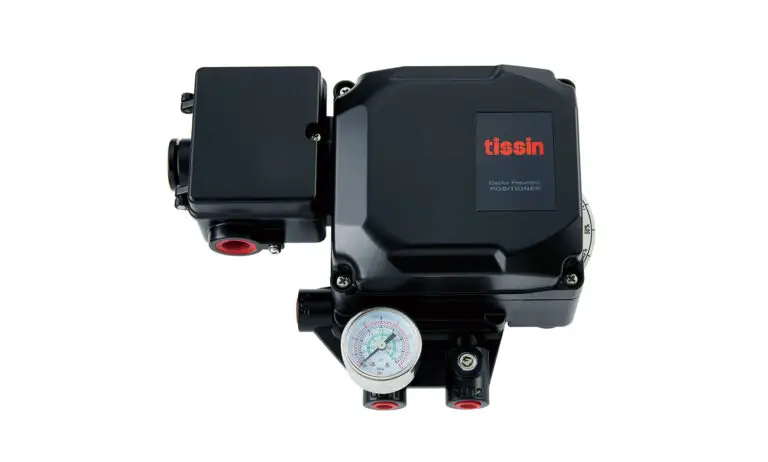

TS600R Series with Position Transmitter Electro-Pneumatic Positioner
- Fast response time, durability, and excellent stability
- Simple zero and span adjustment
- IP 66 enclosure
- Easy maintenance with built-in module type
- By-pass valve (A/M switch) installed
- NPT threads
| MODEL | TS600L-Single | TS600L-Double | TS600R-Single | TS600R-Double |
|---|---|---|---|---|
| Input signal | 4~20mA DC | |||
| Impedance | 250±15Ω | |||
| Supply pressure | 20 PSI to 100 PSI | |||
| Stroke | 10~150mm | 0~90º | ||
| Air connection | 1/4 NPT | |||
| Gauge connection | 1/8 NPT | |||
| Conduit | 1/2 NPT | |||
| Explosion proof type | Non-explosion proof | |||
| Ex dmb IIB T5/T6, Ex dmb IIC T5/T6 | ||||
| Ex ia IIC T5/T6 | ||||
| Enclosure | IP66 | |||
| Ambient Temp. | Operating Temp. | -20℃~70℃(Standard), | ||
| -40℃ ~ 70℃(Low temp.), -20℃ ~ 120℃(High temp.) | ||||
| Explosion Temp. | -40℃~60℃(T5) / -40℃~40℃(T6) | |||
| Linearity | ±1.0% F.S. | ±2.0% F.S. | ±1.0% F.S. | ±2.0% F.S. |
| Sensitivity | ±0.2% F.S. | ±0.5% F.S. | ±0.2% F.S. | ±0.5% F.S. |
| Hysteresis | ±1.0% F.S. | |||
| Repeatability | ±0.5% F.S. | |||
| Air consumption | Below 0.09 SCFM (Sup.= 20 PSI) |
|||
| Flow capacity | Over 2.8 SCFM (Sup.= 20 PSI) |
|||
| Material | Aluminum die casting | |||
| Weight | 6.1 Lbs | |||
