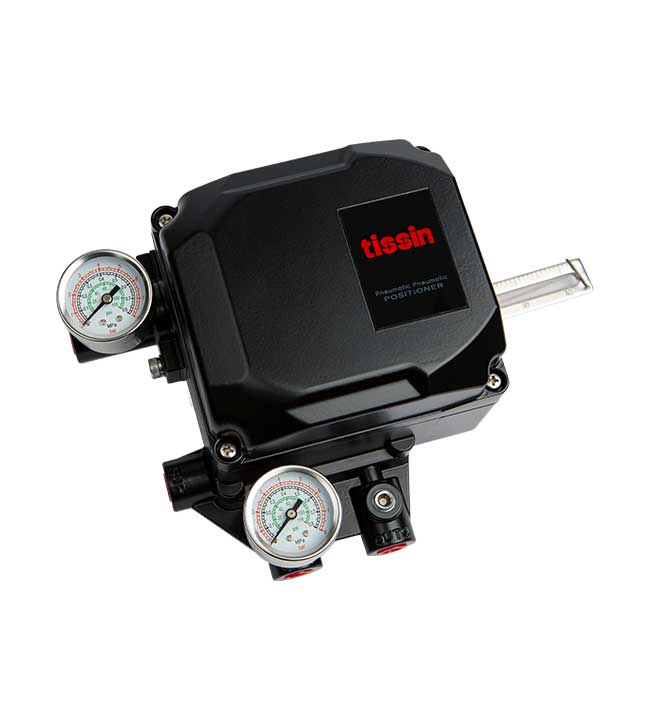

TS610L Series 3-15 PSI Pneumatic Positioner
- Fast response time and excellent stability
- Simple zero and span adjustment
- IP 66 enclosure
- Low air consumption
- By-pass valve (A/M switch) installed
- Position transmitter and Limit switch (Options)
| Model | TS610L(Single) | TS610L(Double) |
|---|---|---|
| Input signal | 3 PSI to 15 PSI | |
| Supply pressure | 20 PSI to 100 PSI | |
| Stroke | 10~150mm | |
| Air connection | 1/4 NPT | |
| Gauge connection | 1/8 NPT | |
| Enclosure | IP66(EN60529) | |
| Enclosure | IP66 | |
| Ambient Temp. | -20℃~70℃(Standard), | |
| Linearity | ±1.0% F.S. | ±2.0% F.S. |
| Sensitivity | ±0.2% F.S. | ±0.5% F.S. |
| Hysteresis | ±1.0% F.S. | |
| Repeatability | ±0.5% F.S. | |
| Air consumption | Below 0.09 SCFM (Sup.= 20 PSI) |
|
| Flow capacity | Over 2.83 SCFM (Sup.= 20 PSI) |
|
| Material | Aluminum die casting | |
| Weight | 6.18 Lbs | |
