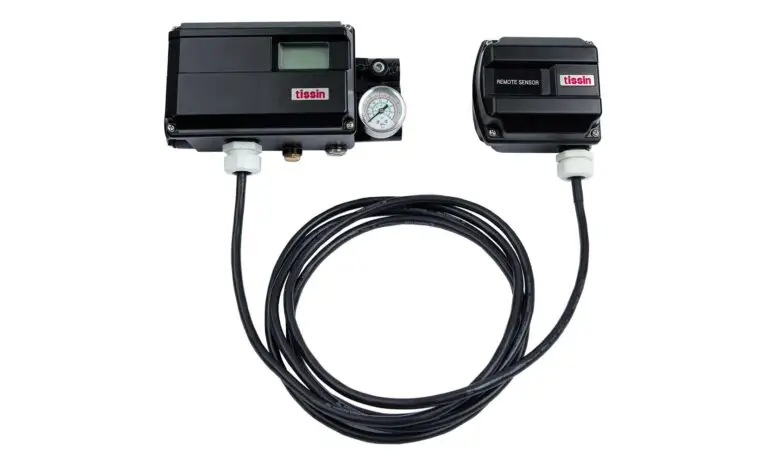

TS720 Series Fail Freeze Remote Smart Positioner
- Remote type
- Fail freeze function
- Zero air consumption when standby signal
- Prevents circuit board corrosion by external air exhaust design
- Built in air filter (5 micron) for protect PIEZO valve
- LCD and 4 button local control
- Quick and easy calibration
- PST and alarm function
- Built-in self-diagnostic function
- Strong vibration resistance and impact resistance
| MODEL | TS720 | |
|---|---|---|
| Input signal | 4~20mA DC | |
| Impedance | 500Ω (20mA DC) | |
| Supply pressure | 20 PSI to 100 PSI | |
| Stroke | 10~150mm(Linear), 0~90℃(Rotary) | |
| Air connection | 1/4 NPT | |
| Gauge connection | 1/8 NPT | |
| Conduit | 1/2 NPT | |
| Explosion proof type | In progress | |
| Enclosure | IP66(EN60529) | |
| Ambient Temp. | Standard temp | -25℃~80℃ |
| Low temp type | -40℃~80℃ | |
| Explosion proof | -40℃~60℃(T5)/-40℃~40℃(T6) | |
| LCD operating | -30℃~85℃ | |
| Linearity | ±0.5% F.S. | |
| Sensitivity | ±0.2% F.S. | |
| Hysteresis | ±0.5% F.S. | |
| Repeatability | ±0.3% F.S. | |
| Air consumption | Below 0.0003 SCFM (Sup.= 20 PSI) | |
| Required air quality | Class 4(ISO 8573-1) | |
| Flow capacity | Over 2.65 SCFM (Sup.= 20 PSI) | |
| Material | Aluminum die cast | |
| Weight | 3.3 Lbs |
